HERMLE Z326 Series Universal Centrifuges

Type	Package	SKU	Price
Non-Refrigerated	None (without Rotor)	HML:Z326	$5,284
Non-Refrigerated	with 4 x 100ml Economy Swing Out Rotor	HML:Z326+Z306-100	$6,761
Non-Refrigerated	with 4 x 100ml Swing Out Rotor with hermetically sealed buckets	HML:Z326+Z326-100H	$7,529
Non-Refrigerated	with 4 x 100ml Swing Out Rotor without buckets	HML:Z326+Z326-100H-AC	$6,922
Non-Refrigerated	with Low Speed Swing Out Microplate Rotor	HML:Z326+Z326-02MP	$7,777
Non-Refrigerated	with 12 x 1.5/2.0ml Hermetically sealed Rotor	HML:Z326+Z326-1220H	$6,862
Non-Refrigerated	with 24 x 1.5/2.0ml Rotor	HML:Z326+Z326-2420	$5,991
Non-Refrigerated	with 24 x 1.5/2.0ml Hermetically sealed Rotor	HML:Z326+Z326-2420H	$6,818
Non-Refrigerated	with 30 x 1.5/2.0ml Hermetically sealed Rotor	HML:Z326+Z326-3020H	$6,938
Non-Refrigerated	with 44 x 1.5/2.0ml Rotor	HML:Z326+Z326-4420	$6,473
Non-Refrigerated	with 64 x 0.5ml Rotor	HML:Z326+Z326-6405	$6,558
Non-Refrigerated	with 4 x PCR strips Rotor	HML:Z326+Z326-3202	$6,662
Non-Refrigerated	with 12 x 5ml Rotor	HML:Z326+Z326-1205	$6,546
Non-Refrigerated	with 12 x 15ml Rotor	HML:Z326+Z326-1215	$6,473
Non-Refrigerated	with 30 x 15ml Rotor	HML:Z326+Z326-3015	$7,123
Non-Refrigerated	with 6 x 50ml Rotor (6000rpm/4427xg)	HML:Z326+Z326-0650-LS	$6,593
Non-Refrigerated	with 10 x 50ml Rotor	HML:Z326+Z326-1050	$7,469
Non-Refrigerated	with 6 x 50ml Rotor (12000rpm/13522xg)	HML:Z326+Z326-0650-HS	$7,759
Non-Refrigerated	with 6 x 85ml Rotor	HML:Z326+Z326-0685-25	$7,930
Non-Refrigerated	with 12 x 10ml Rotor	HML:Z326+Z326-2010	$8,269
Refrigerated	None (without Rotor)	HML:Z326-K	$7,732
Refrigerated	with 4 x 100ml Economy Swing Out Rotor	HML:Z326-K+Z306-100	$9,209
Refrigerated	with 4 x 100ml Swing Out Rotor with hermetically sealed buckets	HML:Z326-K+Z326-100H	$9,977
Refrigerated	with 4 x 100ml Swing Out Rotor without buckets	HML:Z326-K+Z326-100H-AC	$9,370
Refrigerated	with Low Speed Swing Out Microplate Rotor	HML:Z326-K+Z326-02MP	$10,225
Refrigerated	with 12 x 1.5/2.0ml Hermetically sealed Rotor	HML:Z326-K+Z326-1220H	$9,310
Refrigerated	with 24 x 1.5/2.0ml Rotor	HML:Z326-K+Z326-2420	$8,439
Refrigerated	with 24 x 1.5/2.0ml Hermetically sealed Rotor	HML:Z326-K+Z326-2420H	$9,266
Refrigerated	with 30 x 1.5/2.0ml Hermetically sealed Rotor	HML:Z326-K+Z326-3020H	$9,386
Refrigerated	with 44 x 1.5/2.0ml Rotor	HML:Z326-K+Z326-4420	$8,921
Refrigerated	with 64 x 0.5ml Rotor	HML:Z326-K+Z326-6405	$9,006
Refrigerated	with 4 x PCR strips Rotor	HML:Z326-K+Z326-3202	$9,110
Refrigerated	with 12 x 5ml Rotor	HML:Z326-K+Z326-1205	$8,994
Refrigerated	with 12 x 15ml Rotor	HML:Z326-K+Z326-1215	$8,921
Refrigerated	with 30 x 15ml Rotor	HML:Z326-K+Z326-3015	$9,571
Refrigerated	with 6 x 50ml Rotor (6000rpm/4427xg)	HML:Z326-K+Z326-0650-LS	$9,041
Refrigerated	with 10 x 50ml Rotor	HML:Z326-K+Z326-1050	$9,917
Refrigerated	with 6 x 50ml Rotor (12000rpm/13522xg)	HML:Z326-K+Z326-0650-HS	$10,207
Refrigerated	with 6 x 85ml Rotor	HML:Z326-K+Z326-0685-25	$10,378
Refrigerated	with 12 x 10ml Rotor	HML:Z326-K+Z326-2010	$10,717

Category	Benchtop Centrifuge
Manufacturer	Hermle
Country of manufacture	Germany

Median product fulfillment time
Median fulfillment time for Hermle products

Overview

With 17 available rotor options, the Z326 series defines the term “universal”. Swinging bucket rotors and high speed angled rotors are available to accept tubes from 0.2ml up to 85ml, making the Z326 series suitable for nearly any laboratory application. Despite an impressive capacity of up to 4 x 100ml (or 6 x 85ml), the Z326 is surprisingly compact with both the standard air-cooled model and refrigerated model featuring a width of just over 15 inches.

Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone.

Features:

Speed up to 18,000 rpm
G-Force up to 23,542 x g
Swing Out Capacity (not included)

8 x 50 ml, 12 x 15 ml
6 x microplates

Angle Rotor Capacity (not included)

44 x 1.5/2.0 ml
6 x 50 ml
30 x 15 ml

Microprocessor Control

Over-speed protection
Automatic rotor identification
Program Storage (99)
Pre-Cool function (Z326-K only)
Momentary spin button
Imbalance detection
Adjustable Accel/Decel
Audible end of run alarm

Maintenance free induction drive
Motor driven safety lid-lock
Quiet operation, less than 62 DB
Splash proof display
Powerful Refrigeration down to -20°C (Z326-K only)

Additional Rotor specifications can be found on the accessory pages linked below

Key Attributes

RPM	18,000
RCF	23,542
Refrigeration	No
Capacity	4 x 100 ml
Warranty (Years)	5

Manufacturer Specifications

Speed Range: 200 to 18,000 rpm
Max. RCF: 23,542 x g
Max Capacity: 4 x 100 ml
Timer: up to 99 hr, 59 min.
Dimensions: 15.8 x 18.9 x 14.1 in.
(W x D x H) 40 x 48 x 36 cm.
Z326-K 15.8 x 27.5 x 14.1 in.
40 x 70 x 36 cm.
Weight: 94.6 lbs (43 kg)
Z326-K 132 lbs (60 kg)
Electrical: 120 or 230V, 50/60Hz
Power Draw: 455W (Z326-K: 600W)
Temp Range: -20° - 40° C (Z326-K only)

For additional Rotor specifications, see accessories link below

SHOW MORE SHOW LESS

SALE

select from options below to see SKU

All shipments originating from Laboratory Supply Network are carbon neutral!

HERMLE Z326 Series Universal Centrifuges Accessories

No sale

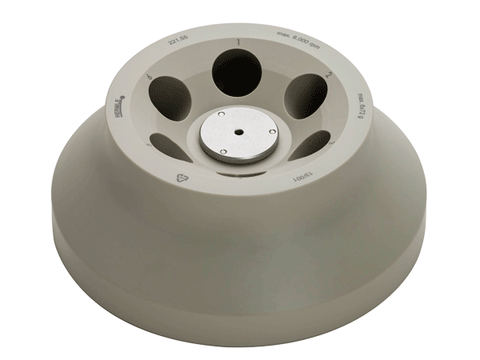

50ml and 15mL Low Speed Angle Rotors and Inserts

6 x 50ml, 12 x 15ml, or 30 x 15ml rotors with Inserts/Adapters for 5-15mL tubes

from $46 USD
No sale

4 x 85ml Angle Rotor and Inserts

With available 50ml, 50ml round, 15ml conical, and 10-15ml round inserts

from $163 USD
No sale

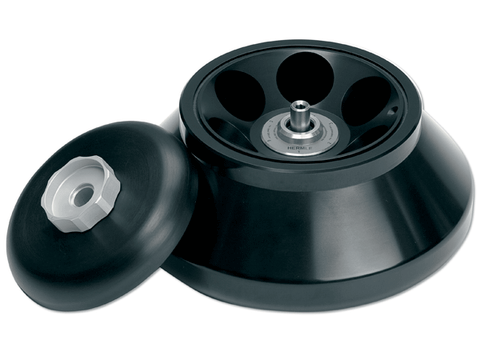

6 x 85ml High Speed Rotor and Inserts

With available 50ml, 50ml round, 15ml conical, and 10-15ml round inserts

from $163 USD
No sale

High Speed Hermle Rotors

0.5ml, 1.5/2.0ml, 5ml, 10ml , 50ml, 85ml, and PCR rotors

from $707 USD
No sale

Inserts for Economy Universal Swing Out Rotors

2-100mL compatible inserts and hermetically sealed buckets

from $217 USD
No sale

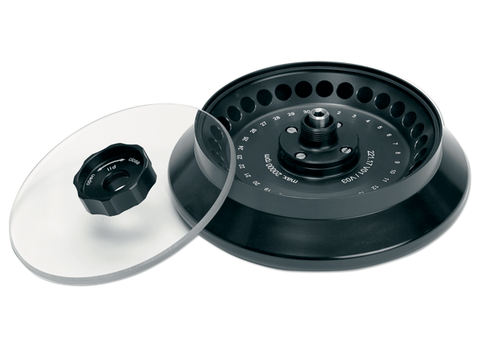

30 x 2.0ml Hermetically Sealed Rotor for Hermle

30 x 1.5/2.0ml Hermetically sealed Rotor

$1,654 USD
No sale

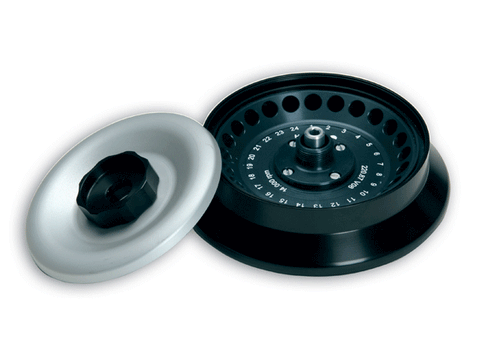

24 x 2.0ml Rotors for Hermle

24 x 1.5/2.0ml Rotor also available Hermetically sealed

from $707 USD
No sale

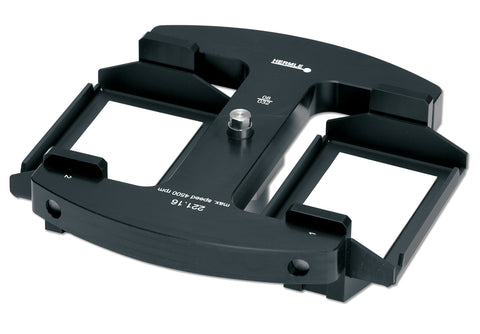

Low Speed Swing Out Microplate Rotor by Hermle

2 x 3 Microplates, or 20 x 0.5 or 1.5mL insert, or 3 place chamber slide and dish adapter

from $85 USD
No sale

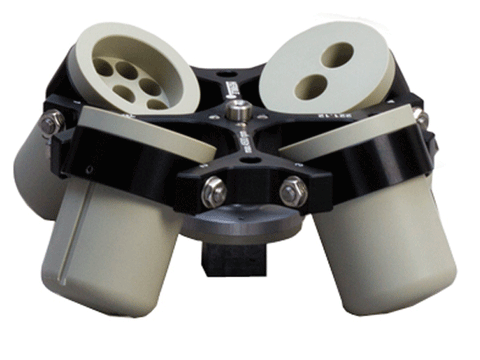

Economy Universal Swing Out Rotor by Hermle

4 x 100ml Swing Out Rotors with or without buckets or hermetically sealed buckets

from $1,477 USD
