Frontier Rotor R-A30x15-4MI and Adapters

Category Accessories
Manufacturer Ohaus

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

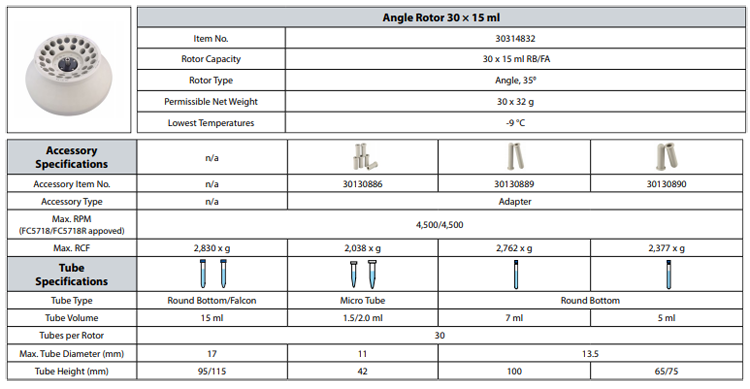

R-A30x15/4MI Rotor

Maximum Speed 4,500 rpm
Maximum Relative Centrifuge Force (x g) 2,830 g
Maximum Capacity (Rotor) 30 x 15 ml
Tube diameter without adapter 18 mm / 15 ml
Rotor Style Angle
Aerosol tight Not applicable
Acceleration Time (sec) 15 / 160
Angle 35°
Compatible Models FC5714; FC5718; FC5718R; FC5816; FC5816R
Deceleration Time (sec) 10 / 986
Dimensions (LxØ) 10 in (254 mm)
Maximum loading weight 960 g
Multiple Maximum Speeds No
OuterInner Radius 125 mm / 109 mm
Net Weight 7.19 lb (3.26 kg)
Working Environment -4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: < 95%)

Available Adapters:

  • Adapter, D11mm, 1.5/2.0ml Tubes x6
  • Adapter, D13.5mm, 7ml Tubes x2
  • Adapter, D13.5mm, 5ml Tubes x2
