Eppendorf Vacufuge Plus Concentrator

Category Centrifugal Concentrator
Manufacturer Eppendorf
Country of manufacture Germany
Overview

The Vacufuge plus with its new design was designed with the customer in mind to deliver an ergonomic, intuitive and durable solution that fits comfortably right on the lab bench. An advanced heating technology provides best treatment for your sample which assures quick, efficient and gentle vacuum concentration of DNA/RNA, nucleotides, proteins and other liquid or wet samples.
Our new coated lid provides superior chemical resistance against aggressive acids and organic solvents (e.g. TFA, DMSO).

The Vacufuge plus is available with three configurations to meet the customers' lab specific needs:
1) Basic Vacufuge for connecting to an existing vacuum pump
2) Complete system with an integrated solvent-resistant, maintenance and oil-free PTFE pump, and condensation trap
3) Complete system with vacuum port adds extra capability. It allows for using the integrated vacuum pump separately – without having to disconnect it from the system.

Features:

  • Comes in 3 system configurations
  • Extremely quiet operation <50 dB(A)
  • Chemical-resistant, maintenance-free PTFE diaphragm pump eliminates the need for changing pump oil
  • Small footprint saves valuable bench space
  • Wide variety of 15 different rotor options to accommodate tubes from 0.2 mL to 50 mL, microplates and PCR plates
  • Motorless induction drive and chemical-resistant, stainless steel chamber for trouble-free operation
  • Can be connected with most commercially available cold traps for use with vapors
  • Coated lid with superior chemical resistance
Key Attributes
Configuration type Vacufuge plus basic Vacufuge plus system Vacufuge plus system w/port
RPM 1,400 1,400 1,400
Tube volume 0.2 – 50 mL 0.2 – 50 mL 0.2 – 50 mL
Connection No No Yes
Capacity max. 144 vessels/2 microplates mL max. 144 vessels/2 microplates mL max. 144 vessels/2 microplates mL
Warranty (years) 2 2 2
Manufacturer Specifications
  Vacufuge plus basic Vacufuge plus system Vacufuge plus system w/port
Vacuum 20 hPa (20 mbar) 20 hPa (20 mbar)
Sample capacity max. 144 vessels/2 microplates max. 144 vessels/2 microplates max. 144 vessels/2 microplates
Fixed speed 1,400 rpm 1,400 rpm 1,400 rpm
Tube volume 0.2 – 50 mL 0.2 – 50 mL 0.2 – 50 mL
Port to connect external devices to vacuum pump no no yes
Volume range 72 mL 72 mL 72 mL
Power supply 120 V, 50 – 60 Hz 120 V, 50 – 60 Hz
Max. power consumption 150 W 350 W 350 W
Dimensions (W × D × H) 33 × 37 × 23 cm 33 × 58 × 29 cm 33 × 58 × 29 cm
Weight w/o accessories 16.5 kg 31.5 kg 31.5 kg
SHOW MORE SHOW LESS

select from options below to see SKU

Green Leaf
All shipments originating from Laboratory Supply Network are carbon neutral!

Do you need assistance?

We have experts standing by to assist you with your purchase. Call now at +1 603-652-1395 or contact us by clicking the button below.

Customer reviews

No reviews yet

Eppendorf Vacufuge Plus Concentrator Accessories


  • No sale
    18 places for 10.0 mL flat-bottom tubes (19 x 66 mm)
      $980 USD
  • No sale
    24 places for 6.0/8.0 mL round-bottom tubes (12 × 67-100 mm)
      $980 USD
  • No sale
    For all 1.5/2.0 mL rotors, set of 6 pcs.
      $43 USD
  • No sale
    6 places for 15 mL conical tubes (17 x 116-123 mm) and 50 mL conical tubes (29.5 x 116-123 mm)
      $980 USD
  • No sale
    Incl. 2 buckets
      $1,599 USD
  • No sale
    16 places for 6.5/10.0 mL flat-bottom tubes (20 x 42 – 55 mm)
      $980 USD
  • No sale
    8 places for 10 mL – 18 mL round-bottom tubes (18 x 105-128 mm)
      $980 USD
  • No sale
    8 places for 8 mL – 12 mL round-bottom tubes (16 × 105 – 120 mm)
      $980 USD
  • No sale
    36 places for 1.5 mL flat-bottom tubes (12 x 32 mm)
      $980 USD
  • No sale
    8 places for 25.0 mL flat-bottom tubes (24 x 86-90 mm)
      $980 USD
  • No sale
    8 places for 15 mL conical tubes (17 x 118-123 mm)
      $980 USD
  • No sale
    36 places for 3.0/5.0 mL flat-bottom tubes (15 x 48 mm)
      $980 USD
  • No sale
    72 places for 0.5 mL reaction vessels
      $980 USD
  • No sale
    70 places for 1.5/2.0 mL reaction vessels
      $980 USD
  • No sale
    48 places for 1.5/2.0 mL reaction vessels
      $980 USD
  • No sale

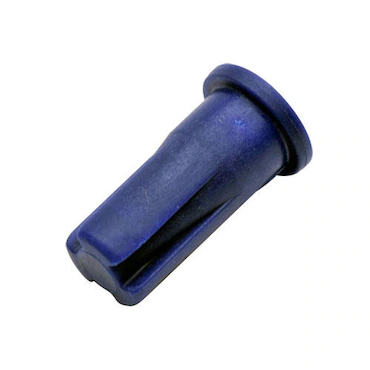

    For 1 PCR tube 0.2 mL, for Rotor F-45-72-8, set of 6 pcs.
      $43 USD
  • No sale

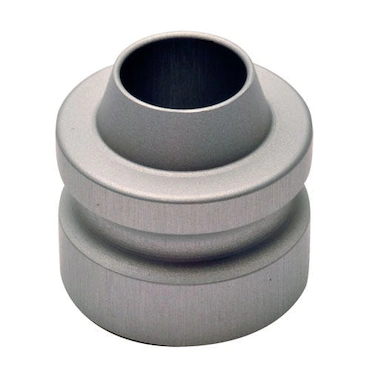

    Required for stacking rotors F-45-72-8 and F-45-48-11
      $73 USD
