Scilogex D3024 High Speed Micro-Centrifuges

Category Micro Centrifuges
Manufacturer Scilogex
Country of manufacture China
Overview

The D3024 Micro-Centrifuge is a compact and powerful high-speed centrifuge used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high-end research applications including Sedimentation of cells and viruses, Separation of sub-cellular organelles, Isolation of macromolecules such as DNA, RNA, proteins or lipids

The SCILOGEX D3024 centrifuge is certified with CE, cTUVus and FCC. MCA test according to IEC/EN61010-2-20. Passed EN61010-2-101:2002 requirements for invitro diagnostic (IVD) medical equipment.

Features:

  • Large LCD display provides all visual information
  • Special multi-flow air cooling design with patent ensures fast cooling of the rotor and low energy consumption
  • Unique temperature display appropriate for gentle handling of sensitive samples
  • Included bio-safe / anti-sample overflow rotor for 24x 1.5 / 2.0 ml centrifuge tubes prevents accidental leakage during centrifugal process
  • High strength aluminum alloy rotor can be fully autoclaved for unlimited service life

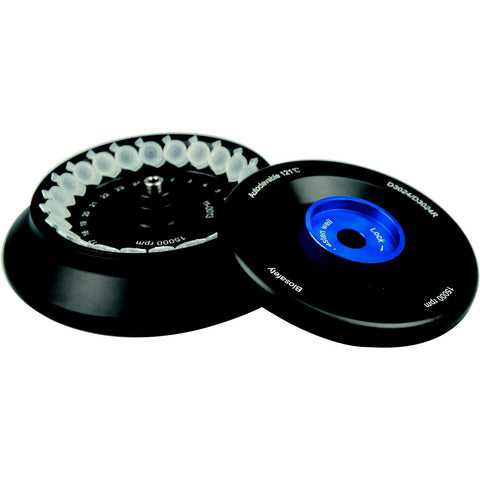

  • Four rotors are optional complete with 24 places 1.5/2.0mL tubes, bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters
  • Pulse operation for quick spins
  • Interlock automatic door lock
  • Over-speed detection

Refrigerated Model Features:

  • Pre-cooling program ensures optimal protection of the sample before warming
  • Guaranteed 2°C cooling within only 7 minutes of both chamber and samples even at maximum speed and capacity utilization
  • Sound-alert allows your undivided attention on other tasks warming
  • Lid lock facility allows for internal temperature maintenance even after centrifugation
  • Intermittent temperature control mode, CFC-free refrigerant and low carbon life rotor capacity
  • Bio-safe rotor/anti-sample overflow prevents accidental leakage during centrifugal process allowing risk-free microbial contamination
  • High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
  • Four rotors are optional complete with 24 place 1.5/2.0mL tubes,bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with the use of adapters
  • Quiet running, noise level ≤ 54dB
Key Attributes
RPM 15,000
RCF 21380
Refrigeration Model Dependent
Capacity 5mL×18, 5mL culture tubex12 0.2mL/0.5mL/1.5mL/ 2mL×24, 0.5mL×36, PCR8×4
Warranty (years) 2



Manufacturer Specifications
Max. Speed 15000rpm(200-15000rpm), increment:10rpm 15000rpm(200-15000rpm), increment:10rpm
Max. RCF 21380×g, increment:10×g 21380×g, increment:10×g
Speed accuracy ±20rpm ±20rpm
Rotor Capacity 5mL×18, 5mL culture tubex12 0.2mL/0.5mL/1.5mL/ 2mL×24, 0.5mL×36, PCR8×4 5mL×18, 5mL culture tubex12 0.2mL/0.5mL/1.5mL/ 2mL×24, 0.5mL×36, PCR8×4
Run Time 30sec-99mins/continuous 30sec-99mins/continuous
Driving Motor Brushless DC motor Brushless DC motor
Temperature Range N/A 20°C-40°C
Safety Devices Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis
Power Single-phase, AC220V-240V, 50Hz/60Hz, 5A, AC110V-120V, 50Hz/60Hz, 8A 200W Single-phase, AC220V-240V, 50Hz/60Hz, 10A, AC110V-120V, 50Hz/60Hz, 10A 400W
Acceleration/Braking time 25s↑ 25s↓ 25s↑ 25s↓
Dimension[WxDxH] 280×364×266mm 338×580×324mm
Weight 12kg 30kg
Certification CE cTÜVus FCC MCA CE cTÜVus FCC MCA
Advanced features Speed/RCF switch; Short-time run function; sound-alert function Speed/RCF switch; Short-time run function; sound-alert function
